01 / Chimney project register

Selected RCC chimney work.

10 chimney references

Selected direct BrajProjects chimney project references
Project / client	Location	Height	Internal diameter	Work
Indian Potash Ltd. Mojj Engg. (EPC)	Odisha	70 m	2.45 m	RCC chimney
SHK Chemtech Industries LLP	Latur, Maharashtra	70 m	2.1 m	RCC chimney
Sarvani Biofuels Pvt. Ltd.	Vijayawada, Andhra Pradesh	70 m	2.1 m	RCC chimney
Shukun Ethanol Pvt. Ltd.	Ahmedabad, Gujarat	60 m	2.5 m	RCC chimney
Chairman Silk Mills Pvt. Ltd.	Bhilwara, Rajasthan	60 m	1.6 m	RCC chimney
Dalmia Bharat & Sugar Industries Ltd.	Kolhapur, Maharashtra	62 m	1.85 m	Chimney refurbishment
Gangakhed Sugar & Energy Ltd.	Gangakhed, Maharashtra	81 m	3.5 m	Chimney refurbishment
Shri Balaji Sugars & Chemicals Pvt. Ltd.	Vijayapur, Karnataka	72 m	2.7 m	Chimney refurbishment
Onkar Sugar & Distillery	Indapur, Maharashtra	40 m	3.2 m	Chimney refurbishment
Terana Shetkari SSK Ltd.	Dhoki, Maharashtra	32 m	2.3 m	Chimney refurbishment

Dimensions refer to each individual structure. Where an EPC company was involved, it is named under the client.

02 / From our sites

Chimney gallery.

A selection of RCC chimney photographs from the company site gallery.

Red-and-white industrial chimney beside a plant steel structure. — Chimney at an industrial plant

Blue-and-white industrial RCC chimney beside plant steelwork. — Blue-and-white chimney

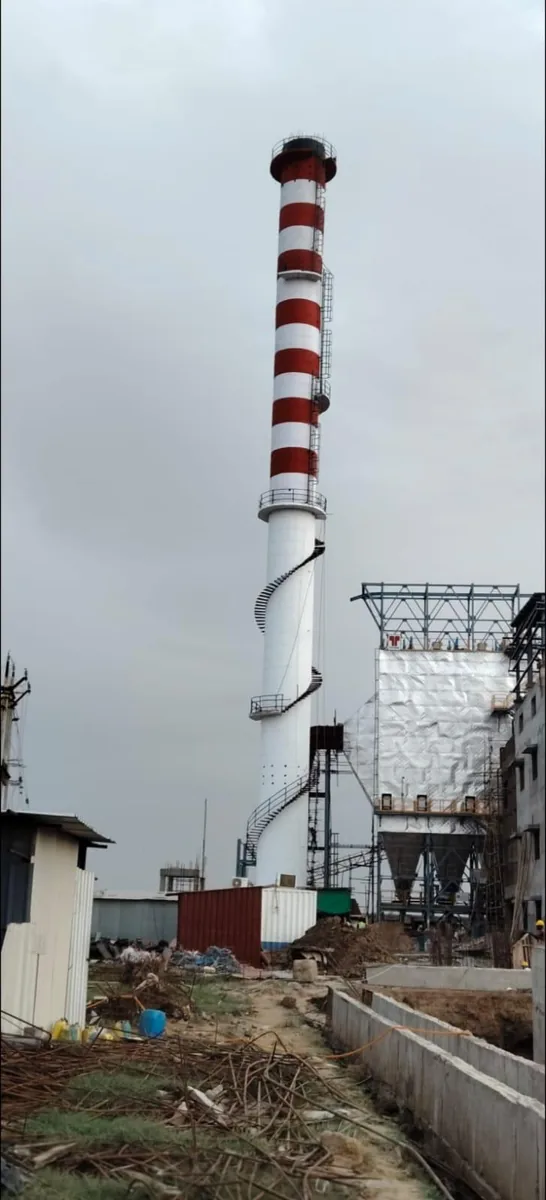

White RCC chimney with a spiral access stair and red-and-white upper bands. — Spiral access stair

Tall industrial chimney with coloured bands and an external access ladder. — Colour-banded chimney

Green-and-white RCC chimney with an external ladder against a cloudy sky. — Green-and-white chimney

Industrial chimney beside a building structure at a project site. — Concrete shell and site structures

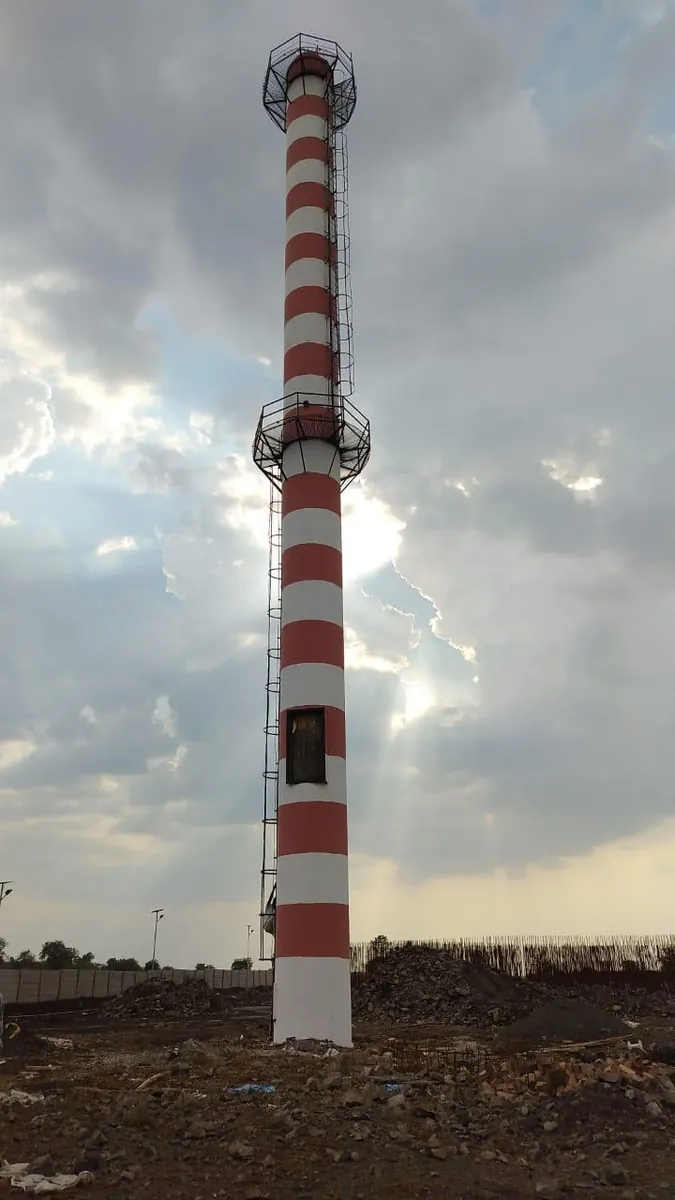

Red-and-white RCC chimney and access platforms at a site under cloudy skies. — Chimney and access platforms

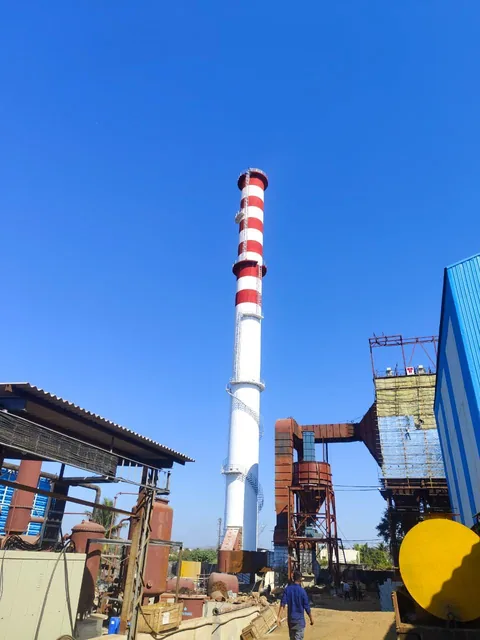

Red-and-white chimney within an industrial plant yard. — Industrial plant yard

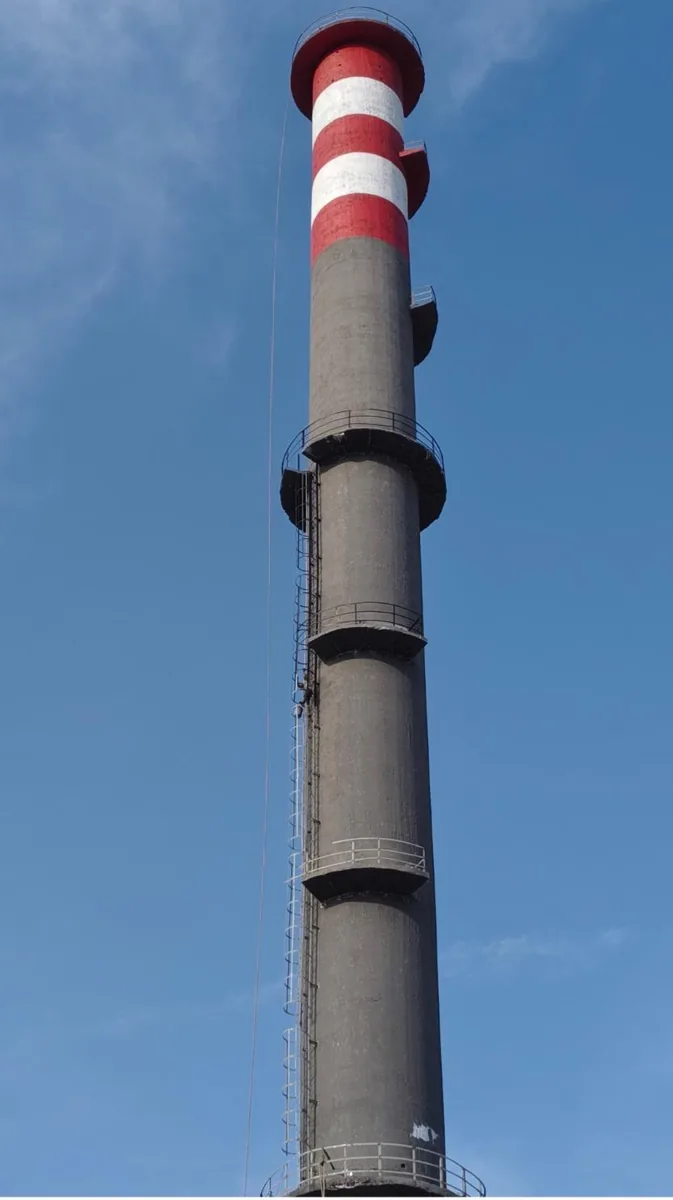

Concrete chimney shaft with circular platforms and red-and-white top bands. — Concrete shaft detail

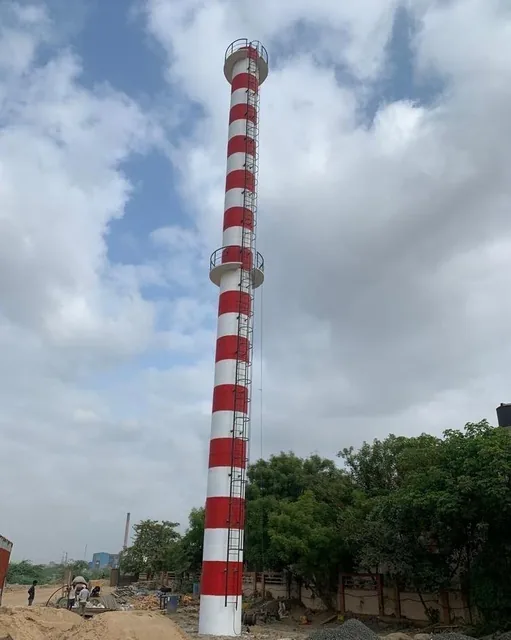

Red-and-white chimney with access platforms beside trees. — Chimney in its site setting

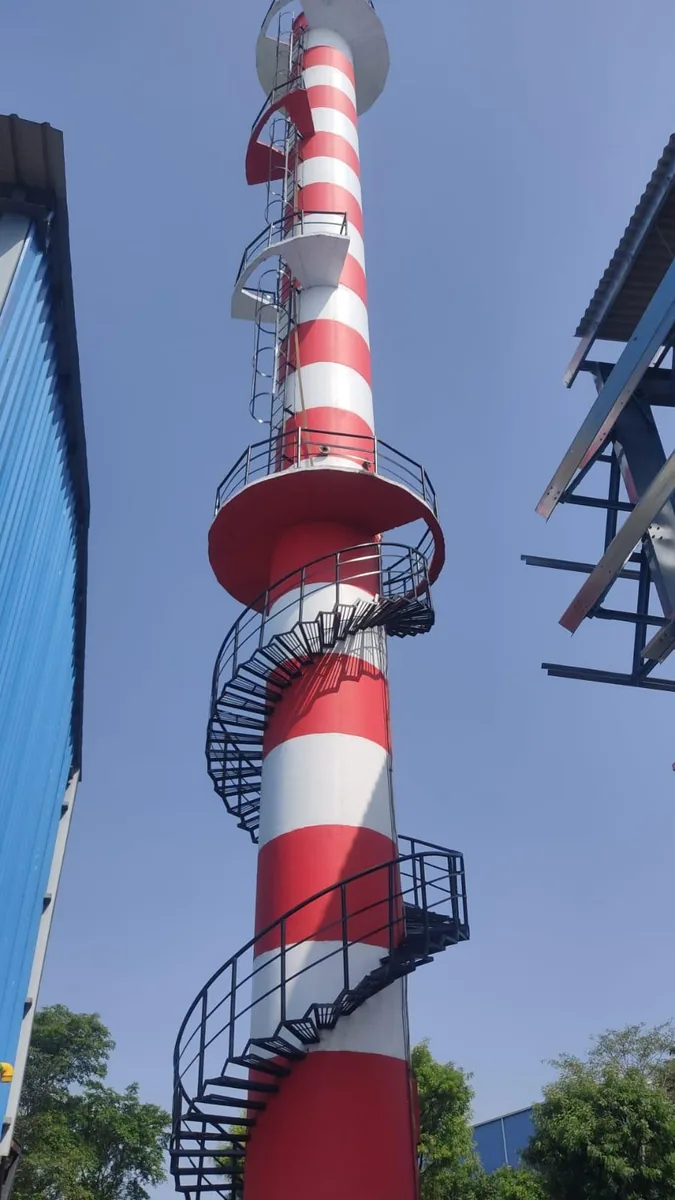

Close view of the spiral stair and access platforms on a red-and-white RCC chimney. — Stair and platform detail

RCC chimney with an external stair beside industrial plant structures. — Chimney beside plant structures

03 / Concrete silo projects

Concrete silo construction.

Silo work from our list of projects executed directly.

Talcher Fertilizers Ltd.
Angul, Odisha · Thyssenkrupp EPC / TKIL Industries

Concrete silos at Talcher Fertilizers from the BrajProjects project list
Structure	Height	Internal diameter
Silo 1	11.5 m	13.5 m
Silo 2	11.5 m	13.5 m
Silo 3	5.5 m	10 m

Silo 3 was listed as under execution when the project list was prepared. The dimensions describe individual structures, not standard sizes.

Explore our concrete silo construction service

Request the company profile Request the project list

Both documents are sent to you by email. They also include projects done under other banners by the BrajProjects team and other contractors, listed separately.
